The Qualcomm Dragonwing IQ-9075 EVK is the reference development platform used throughout this guide to evaluate hardware interfaces, Linux images, peripherals, multimedia, and AI workloads. The EVK combines an IQ-9075 module with a mainboard, power and cooling, boot and mass storage, debug connectivity, wired and wireless networking, high-speed expansion, camera/display interfaces, and low-speed buses.

Obtained from: Qualcomm IQ9075

The block diagram of the EVK is the following:

Obtained from: Qualcomm site

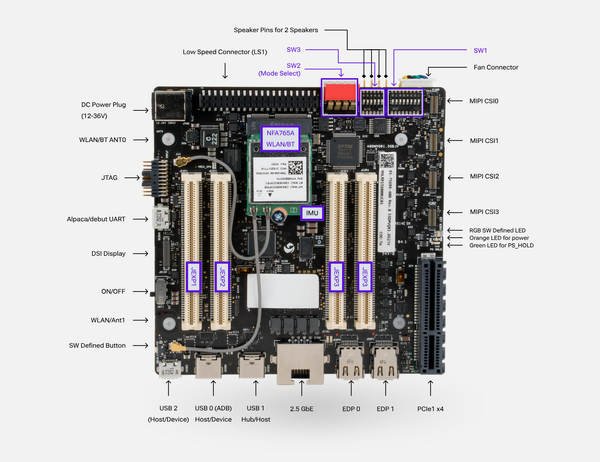

Which can be mapped to the EVK in the following picture:

Obtained from: Qualcomm site

FAQ

What is the IQ-9075 EVK used for?

It is a reference platform for evaluating interfaces, Linux images, camera and multimedia paths, AI runtimes, applications, and performance before a custom design.
